Included Neck/Shoulder Bushing:
Pick the bushing for your desired neck size. Additional bushing sizes can be ordered separately.

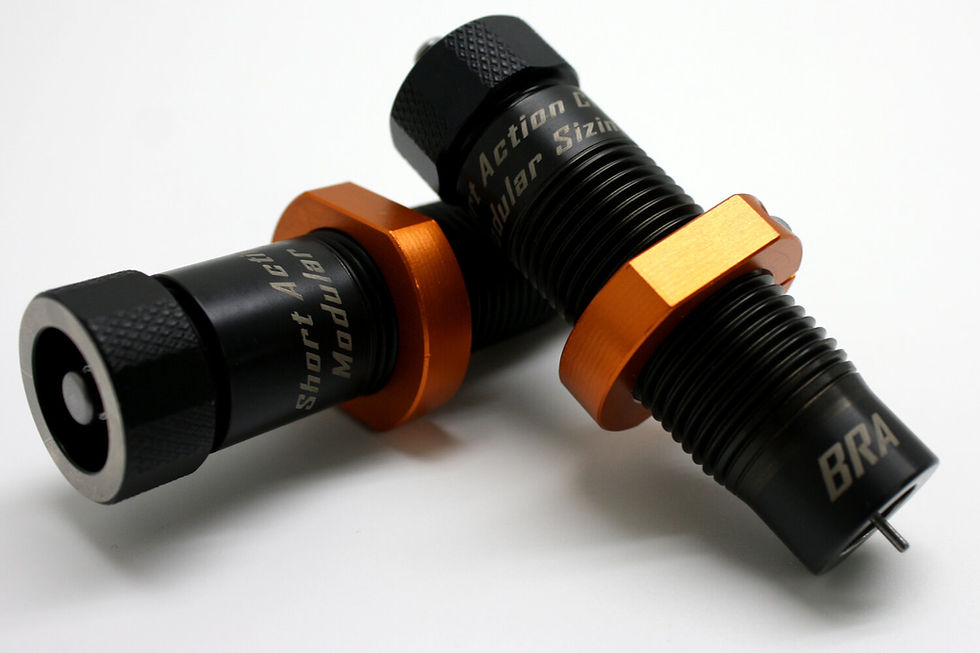

The new Modular Sizing Dies are used for a family of cartridges. The Modular Sizing Die BRA works with rifles chambered with a SAAMI spec’d reamer  . Each die is sold with one Neck / Shoulder Bushing of the customers choice. Please be sure to select the bushing you would like from the menu before you add the die to your cart. Your caliber selection will dictate which decapping pin you receive with your die.

Modular Sizing die BRA is intended for chambers reamed with a SAAMI spec’d reamer
The Modular sizing die sizes more at the base and less at the shoulder compared to traditional resizing dies
Made from 17-4 H1150 Stainless steel that is then nitrided to obtain the utmost lubricity
Made in the USA

“The Modular Sizing Die” has a unique design where the cartridge’s body geometry is sized by the die body, the cartridge’s shoulder and neck geometry are sized by a “Neck / Shoulder Bushing”. This allows one die body to be used for the whole cartridge family.

Furthermore, the Modular Sizing Dies are precision machined with the main focus of properly sizing your fired brass. Our resizing dies will size the base of the cartridge slightly more than the shoulder.
After studying precision CNC machines and tooling, we designed the Modular Sizing Die to utilize a series of shallow tapers, not threads to properly center and secure the Solid Decapping Pin. Our tapered geometry offers unparalleled concentricity and repeatability.

Last but not least, we designed the cartridge sizing geometry to size a little more at the base and a little less at the shoulder when compared to most resizing dies on the market. In properly sized rifle chambers, this helps eliminate extraction issues of fired brass. Our shoulder sizing geometry and helps minimize case runout and over working of the brass by not sizing the shoulder too much.

Modular Sizing Die Assembly
Modular Sizing Die Body: Standard 7/8 x 14 threads, 17-4 Stainless Steel, Special Salt Bath Nitride finish for increased lubricity and performance compared to other resizing dies on the market.
Solid Decapping pin: Designed to be slightly smaller than bullet diameter, the Solid Decapping Pin WILL NOT expand sized necks, however, will fix dented necks, increasing neck uniformity. Utilizing a .058” nominal diameter pin tip to fit in small primer flash-holes. The Solid Decapping Pin can be set to any pin tip protrusion or by simply adjusting the wide mouth retaining clips position.
Knurled ER11 Top Cap: ¾ x 24 Threads tighten the Knurled ER11 Top Cap into the die body, compressing the supplied ER11 collet which properly secures the Decapping Pin or Expander Mandrel ensuring the utmost concentricity.
ER11 Collet: Commercially available ER11 collet to secure a variety of Decapping Pin and Expander Mandrel diameters.
Taper Adapter: When the Knurled ER11 Top Cap is threaded into the die body, it seats the ER11 Collet into the Taper Adapter, in turn securing the Decapping Pin or expander mandrel. The Taper Adapter sits directly above the Neck / Shoulder Sizing Bushing, allowing the Neck / Shoulder Sizing Bushing to float.
Neck / Shoulder Bushings: Available in many caliber specific neck diameters. Special .001” shims can be placed above the Neck / Shoulder Bushing to adjust headspace without threading the die in or out. Like traditional dies
